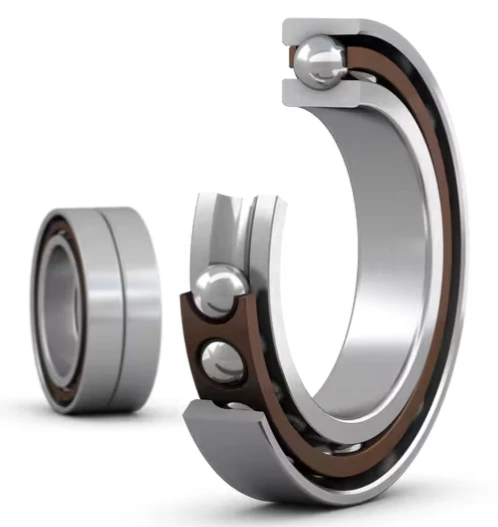

7224 ACD/P4ADBA With Size 120x215x80 mm Super-Precision Single Row Angular Contact Ball Bearings
Super-precision, composed of 2x7224 ACDGA/P4A; Matched Back-to-back; High-speed E design; High speed capability and can accommodate heavier loads.One-piece inner and outer rings type.
Very high running accuracy; accommodates very high speeds.Two-point contact type; Extra light preload; P4A tolerance class; With steel balls; Without coating and sealing.Not lubricant.High-capacity D design.P4A accuracy class.
Suffix meaning:72-Light series 24-120mm bore size ;ACD-25 degree Contact Angle,High Capacity Design.P4A-Precision Rating;DB-Set of two bearings arranged back-to-back
Bore diameter{{0}} mm; Outside diameter-215 mm;Width-80 mm; Mass-10.6 kg; Contact angle-25 degree r=307 kN;C0r=365 kN.
| 7224 ACD/P4ADBA -Single Row Angular Contact Ball Bearing | |
| 120x215x80 mm | |
| d | 120 mm |
| D | 215 mm |
| B | 80 mm |
| 25 degree | |
| 2 | |
| 307 kN | |
| C0r | 365 kN |
| M | 10.6 kg |
